| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PA TECH |
| Certification: | CE |
| Model Number: | JX-J04H, JX-J06H, JX-J08H, JX-J10H, JX-J14H; JX-J02A, JX-J04D |
| Minimum Order Quantity: | 1 set |
| Price: | USD2800-USD45000/Set |
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200-500 sets |
| Keyword: | Double Cylinders Hydraulic Shear | Application: | Construction, Demolition And Mining Services |
|---|---|---|---|
| Brand: | P.A Tech | Type: | JX-J04H, JX-J06H, JX-J08H, JX-J10H, JX-J14H; JX-J02A, JX-J04D |
| OEM: | Available | After-sales Service: | Field Installation, Commissioning And Training, Field Installation |
| Video Outgoing-installation: | Available | Machinery Test Report: | Available |
| Warranty: | 6 Months | Suitable For Excavator: | 3-50ton |
| Rotation Mode: | 360° Hydraulic, 360。 Ball Colling Rotation | Max. Opening: | 440-1200 |
| High Light: |
50ton Excavator Hydraulic Shear,360Degree Excavator Hydraulic Shear,360Degree hydraulic cutting shear |
||
Cutting Machine Used On Excavator, Hydraulic Shears For Excavators Use
Hydraulic shear (concrete type), Hydraulic cutting shear

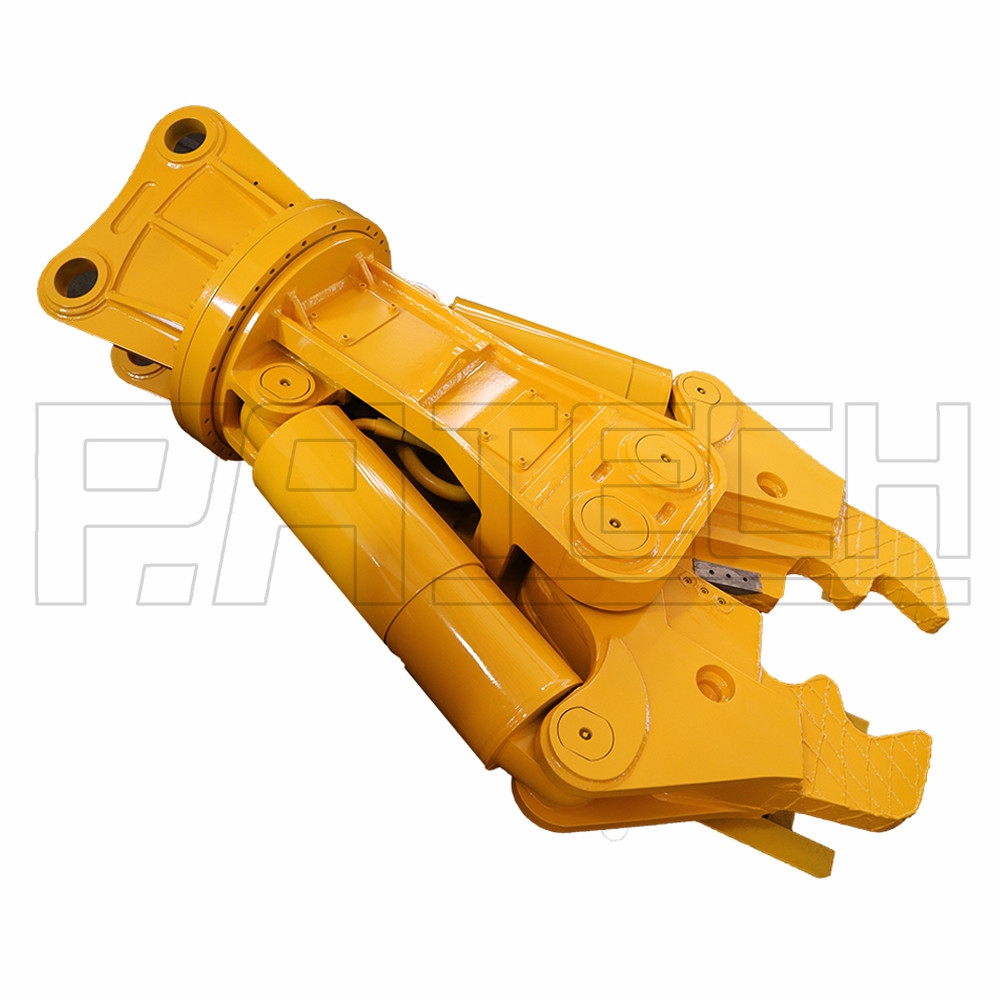

Description of Double Cylinders Hydraulic Shear / Excavator Wood Shear
According to the number of driving cylinders, it is divided into single-cylinder hydraulic shears and double-cylinder hydraulic shears. According to the different tonnage of supporting excavators, single-cylinder hydraulic shears can be divided into four types: 02 (3-5 tons), 04 (5-8 tons), 06 (12-18 tons), 08 (18-26 tons), double-cylinder There are three types of hydraulic shears: 06, 08, and 10 (26-35 tons).
Application of Double Cylinders Hydraulic Shear / Excavator Wood Shear

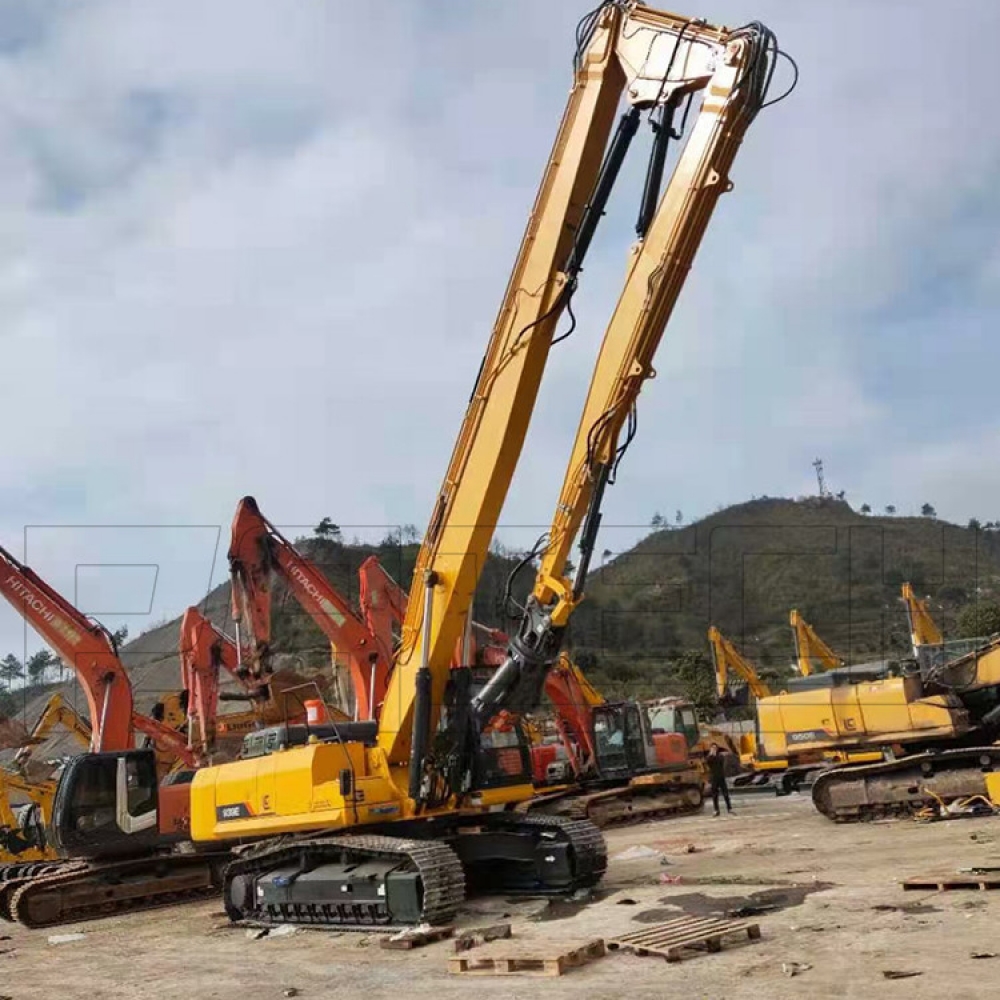

The hydraulic shears are installed on the excavator, our excavator cutting shear could matched with different brands of excavators.
1- P.A Tech excavator tree shear could be used for lumbering, wood cutter
2- Our excavator steel shear could be used for steel bar shear/cutting
3- Besides, our hydraulic shears could also be used for building demolition, rebar recovery, fire rescue, etc.
Product Parameters of Double Cylinders Hydraulic Shear / Excavator Wood Shear
| Concrete | |||||
| Model | JX-J04H | JX-J06H | JX-J08H | JX-J10H | JX-J14H |
| Weight | 620 | 1345 | 2164 | 3060 | 4052 |
| Max. Opening | 540 | 650 | 950 | 1100 | 1200 |
| Height | 1419 | 1888 | 2374 | 2480 | 2700 |
| Width | 884 | 1175 | 1360 | 1540 | 1700 |
|
The Active Length of Blade |
|||||
| Rotation Mode |
360. Ball Colling Rotation |
360. Hydraulic | |||
| Pressure | 235 | 300 | 320 | 320 | 320 |
| Root Curshing Force | 81*2 | 120*2 | 168*2 | 288*2 | 375*2 |
| Middle Crushing Force | 44.5*2 | 66*2 | 78*2 | 125*2 | 174*2 |
| Fore-end Curshing force | 25*2 | 40*2 | 56*2 | 90*2 | 118*2 |
| Suitable for the Excavator | 5-8 | 15-18 | 20-25 | 28-35 | 38-50 |
| Model | JX-J02A | JX-J04D |
| Weight | 350 | 500 |
| Max. Opening | 440 | 515 |
| Height | 1287 | 1525 |
| Width | 765 | 895 |
| Rotation Mode | 360° Mechanical |
360°Ball Colling Rotation |
| Pressure | 210 | 235 |
| Root Curshing Force | 95 | 110 |
| Middle Crushing Force | 45 | 50 |
| Fore-end Curshing force | 25 | 36 |
| Suitable for the Excavator | 3-5 | 5-8 |

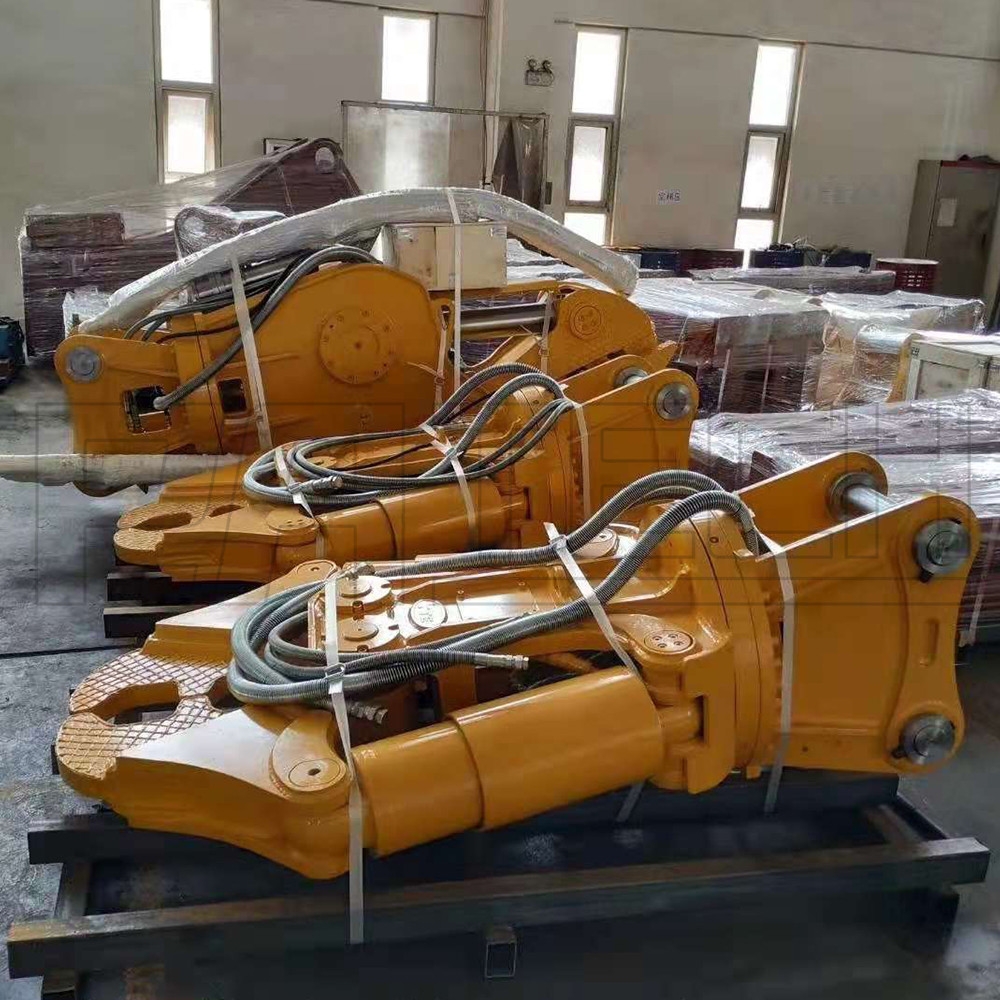

Workshop Show of Double Cylinders Hydraulic Shear / Excavator Wood Shear
Features of Double Cylinders Hydraulic Shear / Excavator Wood Shear

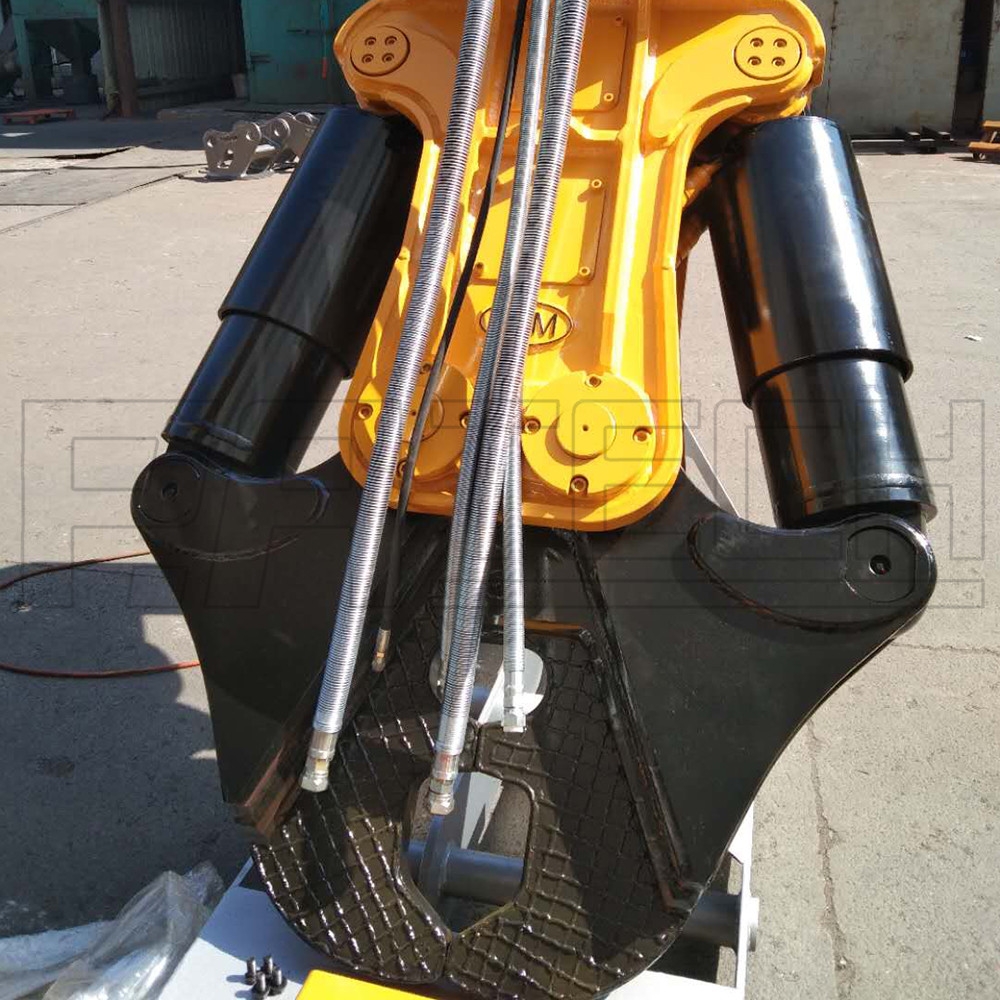

Double cylinder hydraulic shear (concrete):
1. Special rotary support is adopted, and the performance is stable.
2. The shear body is made of imported HARDOX400 plate, which has double-layer wear-resistant protection, high strength and long service life.
3. Suitable for concrete structure, one-time disassembly.
Our Service:
The warranty for our excavator attachments is six months. And, clients could enjoy our on-line consultation and answering service. All our excavator attachments could be customized, OEM is available. As a manufacturer who have strong strong capacity, we usually could arrange delivery for our excavator attachments within 15 days ( delivery can be within one week for cargo that have stock).
If you have any question or want to know more about our excavator attachments,please feel free to send aninquiry to us!We will do the best to help you!
