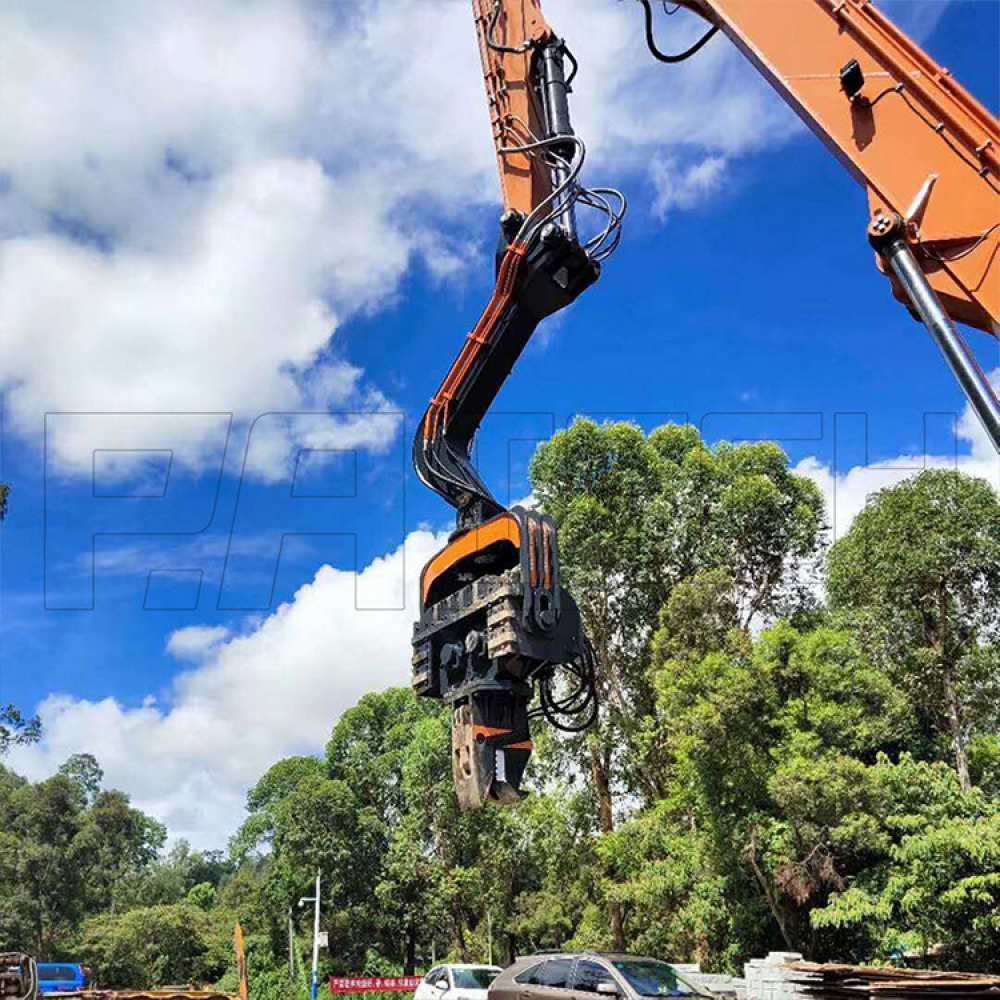

2500kg Excavator Pile Hammer

Highway Guardrail Pile Driver, Pile Hammer Vertical and Horizontal Two Styles.



Description of Hydraulic Pile Hammer, Pile Driver, Vibro Hammer

As a kind of construction equipment, the hydraulic viboro hammer pile driver is used to drive all kinds of piles into the soil to improve the bearing capacity of the foundation. According to the working conditions and customer operation requirements, it has vertical and horizontal two styles.



Application of Hydraulic Pile Hammer, Pile Driver, Vibro Hammer

1- P.A Tech hydraulic pile hammer is widely used in different construction projects, for example, the construction of buildings, bridges, streets, etc;

2- Excavator mounted pile driver is used for the construction of embankments and other engineering construction process;

3- Foundation improvement and reinforcement also need hydraulic static pile driver to do the work;

4- Hydraulic vibro hammer could be used for iaphragm wall retaining;

5- Hydraulic vibro pile hammer is also widely used for diaphragm wall seepage control and other construction of important mechanical equipment.



Features of Hydraulic Pile Hammer, Pile Driver, Vibro Hammer

1. Hydraulic rotary motors and gears are built-in, which can effectively avoid oil pollution and collision. Gear replacement is convenient, closely matched, stable and durable.
2. The box body adopts an open structure to ensure the balance of pressure in the box and stable heat exhaust.
3. Imported high-performance shock-absorbing rubber blocks are adopted, with stable quality and long service life.
4. Adopt imported hydraulic motor with stable performance and excellent quality.
5. The jacket cylinder has strong thrust and pressure-retaining, and is stable and reliable. It ensures that the pile body does not loosen and the construction safety is guaranteed.
6. The material of the clamp is imported wear-resistant plate, which has stable performance and long service life.



Parameters of Hydraulic pile hammer, Pile driver, Vibro hammer

Model	Unit	JXD250	JXD330	JXD350	JXD450
Vibration Frequency	rpm	2800	2800	2800	2800
Eccentricity Moment Torque	N.m	40	50	70	85
Exciting Force	kn	360	450	650	790
Main Machine Weight	kg	2200	2500	3000	3200
Weight of Auxiliary Arm	kg	800	800	900	900
Operating Pressure of Hydraulic System	bar	300	320	320	320
Flow Demand of Hydraulic System	lpm	220	250	300	300
Longest Piling Length	m	9	15	18	22
Suitable Excavator	ton	18-25	26-35	36-50	46-65



Workshop show of Hydraulic pile hammer, Pile driver, Vibro hammer

Construction Site of Hydraulic pile hammer, Pile driver, Vibro hammer
